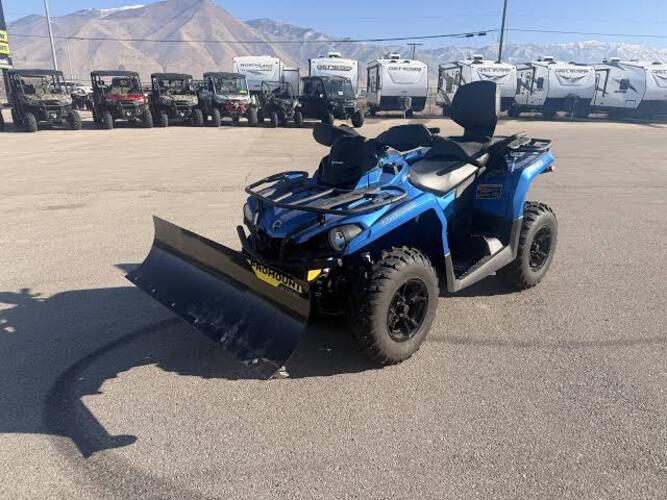

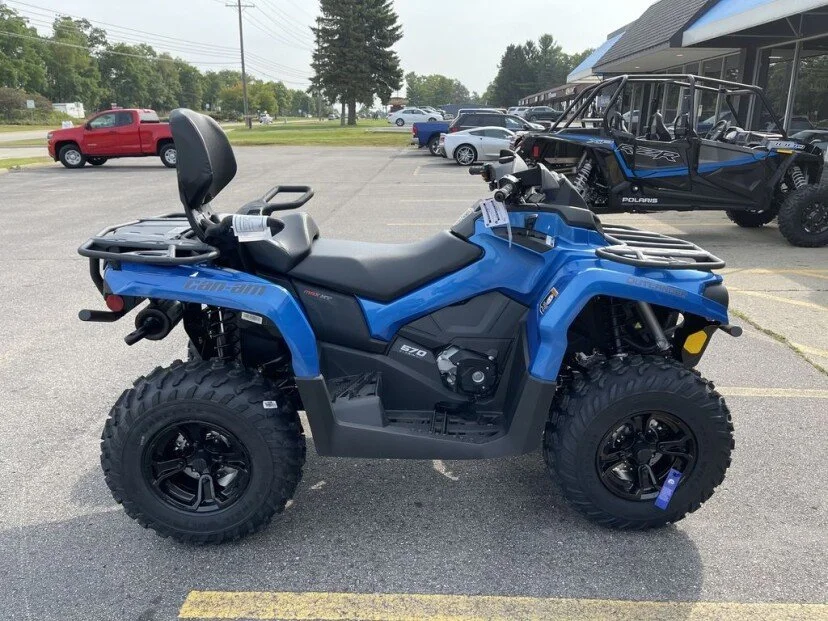

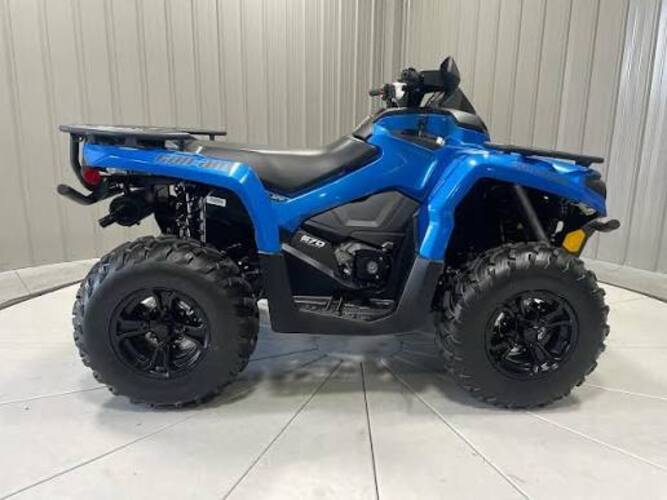

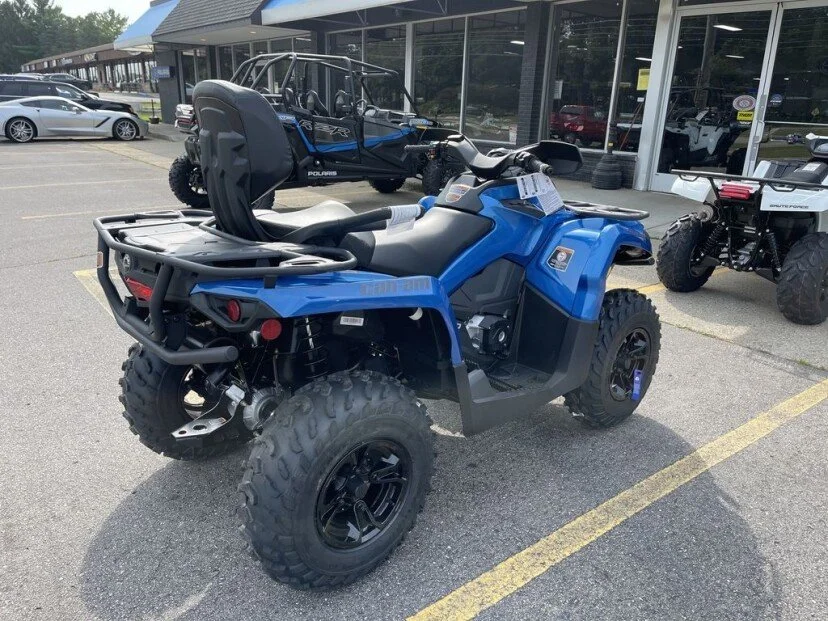

2023 Canam outlander 570 atv

2023 Canam outlander 570 atv Specification

Material
Steel frame, plastic body panels

Size
Standard ATV dimensions (overall length approx. 83 in, width 46 in, height 48 in)

Product Type
All-Terrain Vehicle (ATV)

Application
Off-road recreation, utility, and work tasks

Finish
Gloss paint finish

Color
Blue

Usage
Personal transportation, hauling, towing, and outdoor adventure

Head Type
Single headlight unit

Instrumentation
Digital display (speedometer, odometer, fuel, gear position, etc.)

Drive System
Selectable 2WD / 4WD

Model Year
2023

Engine Type
570cc Rotax V-twin, liquid-cooled

Suspension Rear
Torsional Trailing arm Independent (TTI), 8.8 in travel

Suspension Front
Double A-arm, 9.0 in travel

Model Name
Outlander 570

Towing Capacity
1,300 lbs (590 kg)

Wheels/Tires
12-inch black cast aluminum wheels, off-road tires

Weight (Dry)
Approx. 700 lbs (318 kg)

Lighting
Halogen headlight and LED rear lights

Seating Capacity
2-person (with passenger seat)

Horsepower
48 HP

Front/Rear Rack Capacity
Front: 120 lbs (54.4 kg), Rear: 240 lbs (109 kg)

Primary Features
Electric start, hand guards, reinforced rack, independent suspension

Brakes
Dual hydraulic disc

Transmission
Continuously Variable Transmission (CVT) with engine braking

Fuel Capacity
5.4 gallons (20.5 L)

2023 Canam outlander 570 atv Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About 2023 Canam outlander 570 atv

Engine and Performance

It uses a liquid-cooled Rotax V-twin engine.

A V-twin engine has two cylinders shaped like a "V", which gives the machine smooth power.

It has a selectable 2-wheel drive (2WD) or 4-wheel drive (4WD) system.

The Visco-Lok QE auto-locking front differential helps the wheels grip slippery ground without extra buttons. (A differential splits power to the wheels, and locking it helps when stuck).

Suspension and Handling

The front suspension uses a double A-arm setup to smooth out bumps.

The rear suspension uses Torsional Trailing arm Independent (TTI) suspension. This keeps the tires flat on the ground during bumps for better control.

It rides on 12-inch steel wheels.

Utility and Work Capacity

It has a towing capacity of up to 590 kg (about 1,300 pounds).

It comes in multiple trims, such as the base model, the XT, or the mud-ready versions, depending on what gear you need.

High-Performance Engine and Reliable Transmission

Powering the Outlander 570 is a 570cc Rotax V-twin, liquid-cooled engine that produces 48 HP, ensuring responsive acceleration and consistent performance. The Continuously Variable Transmission (CVT) with engine braking makes shifting smooth while maintaining control during descents and variable terrain.

Versatile Utility and Comfort for Two

Designed for utility and comfort, the Outlander 570 features a reinforced steel frame, dual-person seating, and generous front and rear rack capacities (120 lbs and 240 lbs, respectively). Towing up to 1,300 lbs allows this ATV to handle challenging tasks on worksites or outdoor excursions.

Advanced Suspension for Rugged Terrain

A double A-arm front suspension with 9.0 inches of travel and Torsional Trailing arm Independent (TTI) rear suspension with 8.8 inches of travel deliver stability and comfort on rough ground. Off-road tires and 12-inch aluminum wheels boost grip and durability for diverse terrains.

FAQ's of 2023 Canam outlander 570 atv:

Q: How does the 2023 Can-Am Outlander 570 handle different off-road conditions?

A: The Outlander 570 features selectable 2WD/4WD, advanced suspension, and off-road tires, allowing it to adapt to diverse terrain including mud, gravel, and rocky paths. The CVT with engine braking enhances control on inclines and descents.

Q: What is the towing process with the Outlander 570 and what can it tow?

A: You can attach trailers or equipment to the integrated hitch, and the ATV is rated to tow up to 1,300 lbs (590 kg). Always secure your load and follow recommended speed limits for safe towing.

Q: When should I use 4WD mode on the Outlander 570?

A: Activate 4WD mode when navigating slippery, loose, or uneven terrain such as mud, snow, or steep hills. This provides extra traction and enhances vehicle stability.

Q: Where can I utilize the Outlander 570 efficiently?

A: This model is ideal for off-road trails, farms, work sites, and outdoor recreational areas where personal transport, hauling, or towing power is beneficial.

Q: What are the benefits of the independent suspension system on this ATV?

A: The double A-arm front and TTI rear suspension deliver improved ride comfort, stability, and responsive handling, even over rough and uneven ground, reducing rider fatigue.

Q: How do the lighting and instrumentation features benefit users?

A: The halogen headlight and LED rear lights enhance visibility during low-light conditions, while the digital display provides real-time information such as speed, fuel level, and gear position to keep the rider informed and safe.
